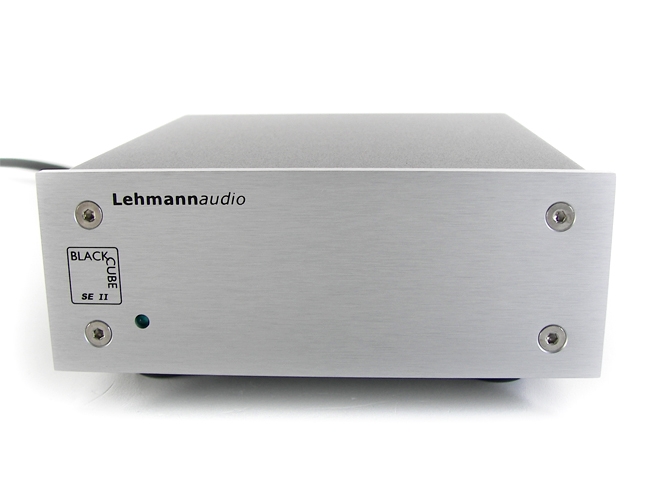

Black Cube SE II

We have introduced half a dozen different phono stages to a very demanding market and have built a reputation merely from their performance. The Black Cube SE II comes with top notch technology that points towards higher price points, like all Lehmannaudio electronics.

User manual; Black finish; Product Information. The advanced version of the multi-awarded Black Cube SE has a lot to offer: based on the SE audio circuit, the SE II has been upgraded with superior sockets, visually it excels by a housing with a faceplate.

The input stages used in the this device can also be found in top notch mixing consoles or in well known professional microphone preamps. The entirely passive RIAA equalization network is realized with high precision foil capacitors for an artifact-free transport of microdynamics and room information. The switches for gain and load settings have gold plated connectors for reliable performance.

A True Audiophile Phono Stage

The maximum gain of the Black Cube SE II is high enough for even very low output MC cartridges. Cartridge adaption itself is totally flexible because gain and lading can be chosen independently from each other. To top this all off, there is a slot for a custom impedance resistor, so that even the most exotic MC cartridges can be loaded adequately without having to buy expensive impedance plugs. No soldering needed.
Because of the small outer dimensions, the Black Cube SE II audio section can be placed next to the turntable. This minimizes loss due to cable length.
Lehmann audio always pays special attention to details: the cable between power supply and audio section is shielded and ensures flexible placement of audio section and PWX power supply. The cases of both th power supply and the audio section are made of non-magnetic aluminum; additionally equipped with a top cover coated with a special anti-resonance treatment for better suppression of microphonic effects.
A brand new feature that is built into the Black Cube SE II is the entirely passive bass filter, that is a great help when tailoring the lower corner frequency of the vinyl reproduction to personal needs. 16 different filter curves can be realized.
Technical:
  • Input Stage: Dual mono Microphone preamp Chip newest generation
  • Gain settings: 36 dB, 46 dB, 56 dB, 66 dB
  • Max. gain: 66 dB
  • Internal impedances (selectable): 47 k, 1 k, 100 R
  • Onboard slot for custom impedance, additional hard wire slot
  • Internal input capacitance and cap type : 100 p, KP 1 %
  • RIAA filter caps: MKP
  • Bass coupling after RIAA: MKP
  • Second gain stage: Dual Mono Burr Brown OPA 134
  • Output capacitor: MKP
  • 16 different settings for optimized configuration of high pass filter
  • DIP-switch configurable
  • Discrete Output buffer for Zero global feedback
  • DC-Output jumper
  • RC-Filters with high electrolytic bypass
  • Soft Bass Rolloff filter
    • Lehmann black cube se ii user manual free
